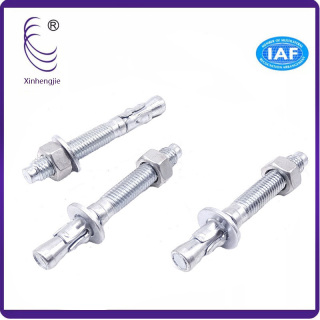

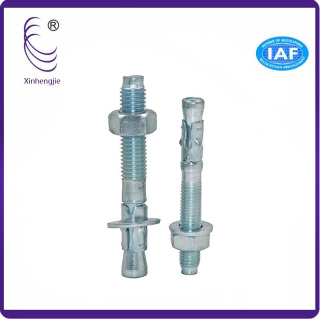

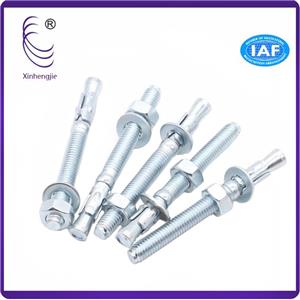

Concrete Wedge Expansion Anchor
1. Xinhengjie wedge anchor is made of high quality carbon steel and galvanized to prevent rusting
2. Drill diameter/hole diameter is the same as anchor shape diameter (concrete only)
3. Wedge anchor is a torque controlled wedge expansion anchor. The required installation torque for anchors is 1.2 m/lb.
4. Concrete anchors are suitable for heavy duty fastening applications requiring high pull-out values in concrete. For concrete only, not for brick or brick-based materials
5. Wedge anchors are used to secure sheet metal, steel, aluminum angles or wood to concrete. Wedge anchors are ideal for structural anchoring, storage rack anchoring, machinery and handrail installation
Concrete Wedge Expansion Anchor
Concrete Wedge Expansion Anchor is widely used in concrete base plates and consists of carbon steel and stainless steel.
There is no high requirement for the depth and cleanliness of concrete cavity, it is easy to install, and the price is not expensive. Choose the appropriate embedding depth according to the thickness of the solid roof. As the embedding depth increases, the tensile force increases, and this product has a reliable post-expansion function. Body material: stainless steel, carbon steel and other metal materials.
Information about Concrete Wedge Expansion Anchor
| Product name | Wedge Anchors |
| Place of origin | China(Mainland) |
| Brand Name | XINHENGJIE |
| Port | Xiamen or according to requirement |
| Delivery time | Normally in 7-35 days, according to quantity |
| MOQ | 500kgs for each specification |
| Mark | According to customer’s requirement |
| OEM | Available |
What is a wedge anchor for?
When you understand this kind of parts, you will find that such a part can use some standard product equipment for installation, but also can use some shallow buried deep method to install, such a kind of installation can provide greater flexibility. In addition, the wedge-shaped anchor has a relatively long thread, which can also be applied to which pitch type of installation, can do a good job of flexible adjustment.
The fasteners of the wedge anchor are also important standard parts, so there are different national standards, so that this equipment can be used in the process of economic installation of semi-finished products in different countries, that is, they may be produced in different countries in different styles, then the installation of this case, different standard styles and products made of In this case, the installation of different standard styles and products, basically their performance will be different, so it is possible to adapt to different working environments, so that the general material of this product is stainless steel or carbon steel, but from the current situation, the strength of the carbon steel wedge anchor is very high, the safety index is relatively high, then there will be a better use of strength.
Product Features
Concrete Wedge Expansion Anchor threads are long and easy to install, and are often used in heavy-duty installations.
To obtain a reliable, substantial fastening force, it is necessary to ensure that the clamping ring fixed to the wedge anchor is sufficiently expanded. And the expansion ring must not fall off the rod or twist in the hole.
Applications
Suitable for concrete and dense natural stone, metal structures, metal profiles, base plates, support plates, brackets, railings, windows, curtain walls, machines, beams, trusses, brackets, etc.
