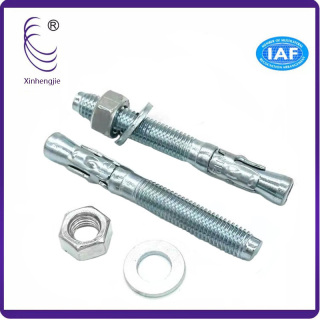

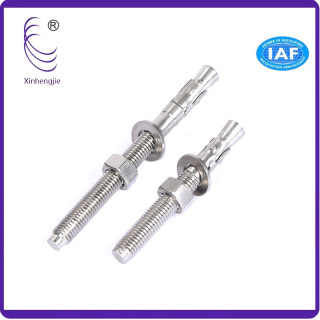

Metric Carbon Steel Wedge Anchors
Diameter: 0.95cm | Length: 7.62cm | Quantity: 5 Pieces. Our Wedge Anchors are made of high quality carbon steel, galvanized to prevent rust
The drill diameter/hole diameter is the same as the anchor diameter. Use a 3/8" (about 1.9 cm) drill to drill holes in the base material (concrete only)
Wedge Anchors are torque controlled wedge expansion anchors. The required installation torque for the anchor is 6.1 m/lb.
Anchors are used to fasten sheet metal, steel, aluminum angles or wood to concrete.
Anchors fasteners are ideal for structural anchoring, storage rack anchoring, mechanical and handrail installations
Some tips and tricks for Metric Carbon Steel Wedge Anchors
Please put a nut on those threads before hammering or us a brass hammer. Otherwise you may mushroom the bolt.
Q:What should be size of drill??? if the foundation/anchoring bolt size is 16 mm ??14 mm drill size ?? Or same 16 mm same as bolt size ? Pls tell me.
A:You use the same size drill bit as the anchor size
Q:Any information on how to make the holes you had already made for the anchors? Was that with the hammer drill - and how do you measure depth/width of the hole?
A:It was with a hammer drill. The diameter of the drill should be the same as the anchor you are installing. The depth depends on the anchor and what you are drilling into, but it's typically 1/4"-1/2" longer than the anchor you are installing to help with any excess dust that gets down there during drilling.
Q:How deep do you drill the holes for the respective anchors in order to control the exterior protrusion of the bolt?
A:The exact depth of drilling will differ from anchor to anchor, size to size, but it's generally 1/2" deeper than the anchor's length, with drop-ins being as deep as the anchor itself. Specific anchors will state their drill depths.
Q:Which anchors are the strongest to the weakest when it comes to pullout force.
A:Wedge anchors have the best pullout resistance of all the anchors with sleeve anchors relatively close behind. I'd estimate Drop-in anchors and Lag shields being after that with hammer-drive pin anchors being the "weakest." Keep in mind that all have good resistance to pullout and the material they are being installed into will affect their performance.
How do I order a wedge anchor?
Our quotation is based on your requirements for material, size, coating, and quantity of wedge anchors
Size: including direct and length
Material: Stainless steel or carbon steel
Plating: Zinc, blue zinc, yellow zinc, white zinc, hot dip zinc, or natural
The most common are blue and white zinc and white zincQuantity: how many pieces you need Different requirements correspond to different prices, so we need to check with you clearly
