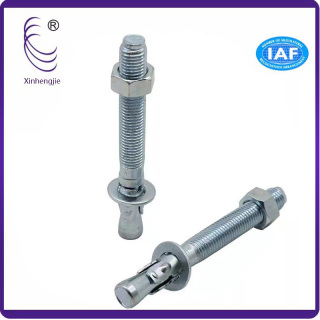

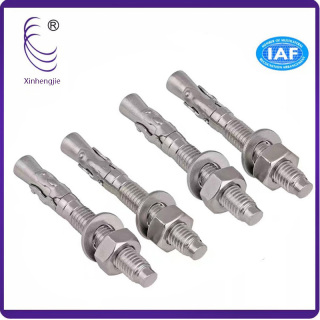

Power Stud Wedge Type Anchor Fastener Bolt
Helps prevent rusting and dry environments is available in a variety of sizes - ensure the right fastener is selected for best results
Comes with nuts and washers - for quick, fast, complete installation hole size is boat anchor size - simple and easy to install
Power Stud Wedge Type Anchor Fastener Bolt
Power Stud Wedge Type Anchor Fastener Bolt are the most convenient wedge anchors available today, they are easy to use, affordable and able to perform well in ambient temperatures, therefore, they are the most widely used wedge anchors in industrial, technical, commercial and consumer applications.
How do I order a wedge anchor?
Our quotation is based on your requirements for material, size, coating, and quantity of wedge anchors
Size: including direct and length
Material: Stainless steel or carbon steel
Plating: Zinc, blue zinc, yellow zinc, white zinc, hot dip zinc, or natural
The most common are blue and white zinc and white zincQuantity: how many pieces you need
Different requirements correspond to different prices, so we need to check with you clearly
How deep is a wedge anchor?
Wedge anchors can be installed deeper in the concrete than the minimum embedment depth and will provide better retention values as long as the embedment depth is not too extreme
The minimum length of the wedge anchor to be used is determined by adding the thickness of the material being fastened plus the minimum embedment of the wedge anchor diameter used plus the space for the nut and washer. As a rule of thumb, the space for the nut and washer is equal to the diameter of the wedge anchor being used. For example, if a 1/2" wedge anchor is used to secure a 2x4 to concrete, the minimum length of the wedge anchor will be 1-1/2" (2x4) + 2-1/4" (minimum embedment) + 1 /2" (space for nut and washer) = 4-1/4 ". The minimum length of a 1/2" diameter wedge anchor used for this application is 4-1/4".
Product Specifications
