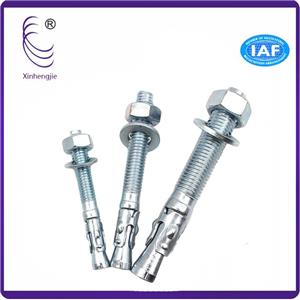

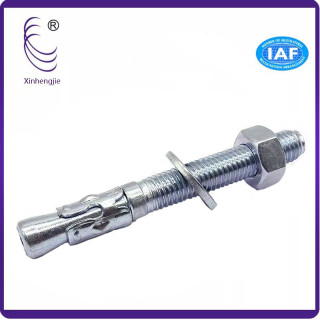

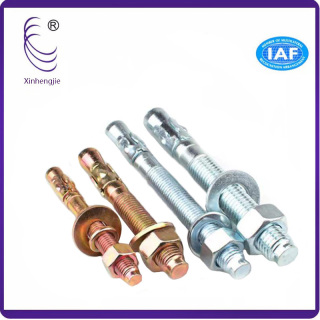

Steel Expansion Wedge Anchor Bolt
【High Quality Stainless Steel】 Wedge anchors are 100% 18-8 (304) stainless steel, and therefore have the highest corrosion resistance. This makes them perfect for any environment (including marine/sea water).
【Anchors You Can Rely On】 Our concrete anchors are extremely strong and suitable for both indoor and outdoor use. Whether you are mounting your boat lift on a sea wall or anchoring your boat to the concrete in your garage, you can rely on the wedge anchors to hold it up.
【Perfect for on-the-go】Wedge anchors are perfect for when you need them most! Suitable for any application, any condition and environment! Wedge anchor fasteners are the highest quality on the market, they are strong, corrosion resistant and long lasting.
Steel Expansion Wedge Anchor Bolt
Wedge anchor use, you need to use the impact drill hammer in the corresponding size of the hole in the fixed body, and then the bolt, expansion tube into the hole, tighten the nut can make the bolt, expansion tube, the installation and the fixed body between the expansion into one.
Wedge anchor in order to ensure the quality of the expansion tube, before the expansion of the tube must do a good job of tools, gauges, operators to determine the work. Inspection should be cleaned off the protective coating on the wall of the pipe hole, check the quality of the processing of the wall of the pipe hole, there should not be sand eyes, dents, edge burrs and longitudinal scoring; longitudinal or spiral scoring depth of not more than 0.5mm, width of not more than 1mm, the distance between the scoring to the edge of the hole shall not be less than 1/3 of the thickness of the hole wall, and not less than 4mm. Produce obvious scoring tools, the hole wall will be processed to issue a metallic luster.
| Material | Carbon steel/Stainless steel |
| Standard | wedge anchor/anchor bolt/drop in anchor/ceiling anchor/sleeve anchor/wall plug nail anchor/concrete anchor |
| Thread | Metric Coarse/Fine |
| Diameter | M6-M24 |
| Length | 20mm - 200mm, 3/4''- 8'' |
| Surface Treatment | Zinc Plated/Black/Black phosphated/HDG/Ruspert |
| Thread Angle | 60 ° |
| Certification | ISO 9001,REACH,ROHS |
| Packing | Small box/Small bag/Bulk Carton/ Pallet |
How strong are concrete wedge anchors?
M6 wedge anchor bolts with a maximum tensile strength of 475 (KGS)
M8 wedge anchor bolts with a maximum tensile strength of 705 (KGS)
M10 wedge anchor bolts with a maximum tensile strength of 1826 (KGS)
M12 wedge anchor bolts with a maximum tensile strength of 3215 (KGS)
M20 wedge anchor bolts with a maximum tensile strength of 4450 (KGS)
How about installing wedge anchors?
