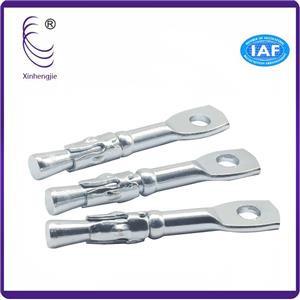

Tie Wire Concrete Wedge Anchor
Concrete wedge anchor, which has an ultimate tension of 680 IBS and an ultimate shear of 920 IBS, is mainly galvanized carbon steel, mainly used for ceilings, and is used with wire to make it partly fixed, the fixing method is by tapping the expansion
Specifications for this item
| HS Code | 731815 |
| Product Description | Tie wire anchor |
| Brand name | XHJ |
| Exterior Finish | Zinc |
| Fastening Type | Wedge anchor |
| Head Type | Eye Type |
| Finish Type | Zinc plated |
| Item Diameter | 1/4 inches ~ 1 inches(Custom sizes available) |
| Length | 2 inches~5 inches (Custom sizes available ) |
| Meterial | Carbon Steel-Zinc plated |
| Measurement System | Inch |
| Pull Force | 680.00 pounds |
| Specific Uses For Product | concrete |
| Style | Tie Wire |
Product Parameters
| Size | eye size diameter(mm) | Diameter hole φ (mm) | Min Embedment (mm) | Pull Out Load In Concrete (kgf) |
M6*40 | 6.1 | 6.0 | 30.0 | 480.0 |
| M6*50 | 6.1 | 6.0 | 30.0 | 480.0 |
| M6*55 | 6.1 | 6.0 | 30.0 | 480.0 |
| M6*60 | 6.1 | 6.0 | 35.0 | 550.0 |
| 1/4*2-1/4 | 7.1 | 6.5 | 35.0 | 550.0 |
| 1/4*2 | 7.1 | 6.5 | 30.0 | 550.0 |
*The pull-out force (100KG ≈ 1KN) is valid for one single anchor, in concrete C20/25 for an isolated anchor
How do I install it?
Fisheye Gecko Pull Cord Retainer is easy to install and can be easily fixed by pulling back with a crook hammer.
-Strong holding power, specially designed to protect anchor points in concrete ceilings.
-Suitable for: suspended ceilings and light suspension.
Certifications
Packaging & Shipping
FAQ
Q1: Are you manufacturer or trading company?
A1: We are professional manufacturer with 13 years experience. We accept OEM, ODM as your needs and assure the competitive price and quality for you.
Q2: Can you offer me sample?
A2: Yes, we can offer you sample to test and check quality.
Q3: How does your factory do regarding quality control?
A3: We have professional QC team to inspect each items from the links of production to package.
Q4: How about your delivery time?
A4: Normally it will take 25-45 days after receiving your deposit.
1.Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoid within door.
2.Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
